Unlock Ultimate Performance & Simplicity with Power-Thru Technology

Design and Application Guide for AHV85110

Deliver reliable, efficient, affordable systems to market faster with new patented Power-Thru technology by Allegro. OurAHV85110 is a self-powered, single-channel isolated gate driver with integrated bias supply. This revolutionary design allows the transfer of both PWM signal and gate power across a single transformer-based isolation barrier to eliminate the need for an external bias supply to power the isolated side of the driver and simplifies the system design.

This application note describes how to choose components and their placement when designing with the AHV85110 isolated gate driver.

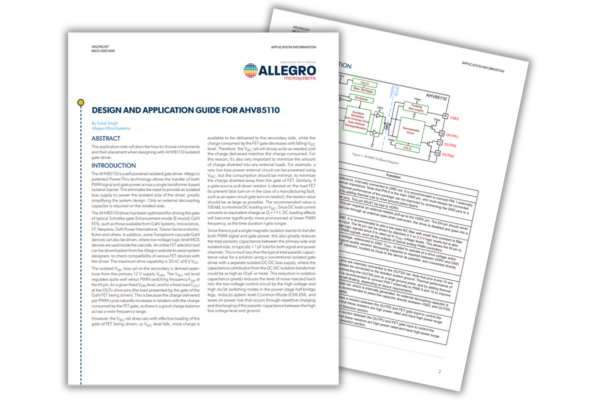

HV Application Note

Download our Application Note
